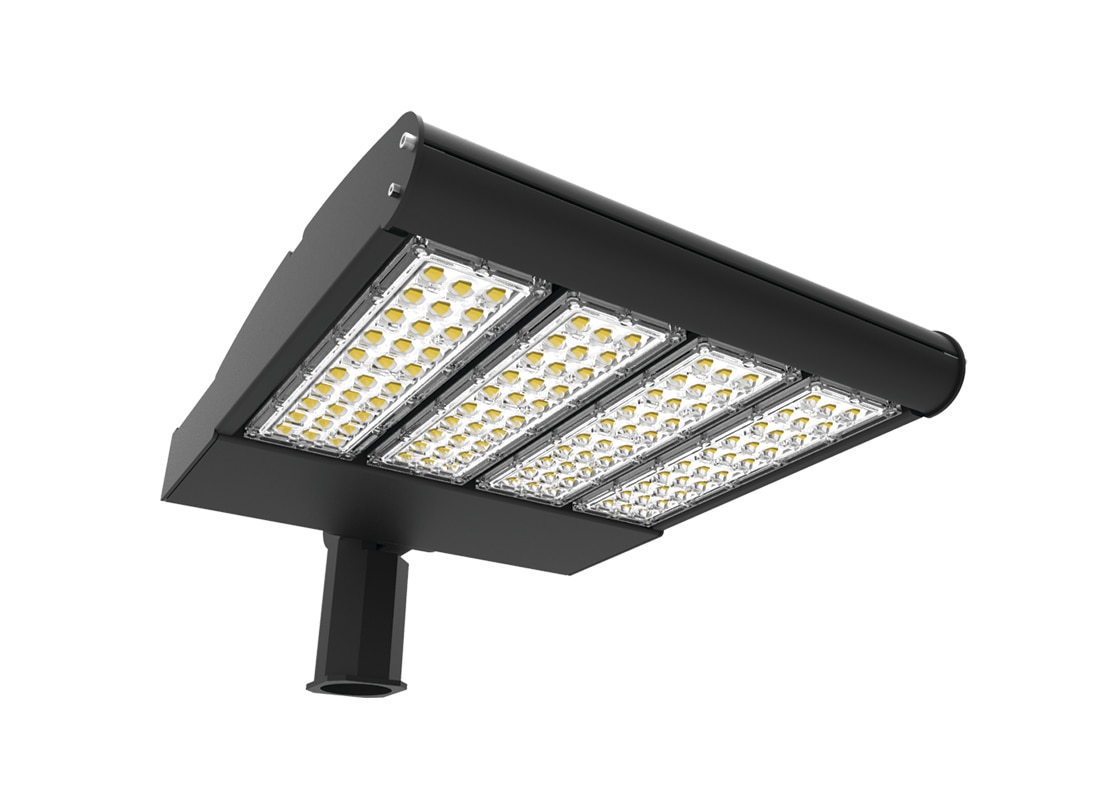

    Glare-Free Tennis Court 240W

    Glare-Free Tennis Court 240W

    EL-NED-240TC

    Glare-Free Tennis Court 240W

    Item ID: EL-NED-240TC
    System Light Efficacy 150lm/W - 155lm/W

    Glare-free lens specially designed for Tennis Court.  No tilting of the fixtures.  Minimum lighting spill outside of the Court.

    Extreme high uniformity.

    240W is ideal for 6-pole or 8-pole recreational tennis court.



    Price: Please log in for price
    Description
    Add to Cart
    Description Specifications Documentation Add to Quote

    Technical

    LED Chip:Lumileds 5050
    Lumen Output:37,200 lm
    Wattage:240W
    Color / CCT (K):3000K, 4000K, 5000K, 5700K
    Optics:Type 4
    CRI:>70
    Voltage:100-277V, 277-480V
    IP Rating:IP66
    Warranty:5 Years
    Certification:

    Dimensions

    Dimension (L x W x H):27"L x 16"W x 3.25"H
    Weight:17.4 lb

    Color and CCT

    Optics

    Ordering Information

    ItemWattageColor/CCTOpticVoltageMountingControlFinishesAccessories
    EL-NED-240TC- -240W
    -400W
    -600W
    -30K
    -40K
    -50K
    -57K
    -T4 -UNV (100-277V)
    -HV (347V-480V)
    -S (Slipfitter)
    -A (Direct Arm)
    -01(Dimmable Driver)
    -02 (Motion Sensor)
    -03 (Photocell)
    -04 (Remote Control)
    -BR Bronze
    -GR Gray
    -BK Black
    -GN Green-
    2 Feet Wire Lead

    Create Product Code

    Use the above information to create a custom product code specific to your needs. Add the quantity you desire.

    EL-NED-240TC Add To Quote

    RELATED TO THIS PRODUCT

    EL-NED-400TC

    EL-NED-600TC
