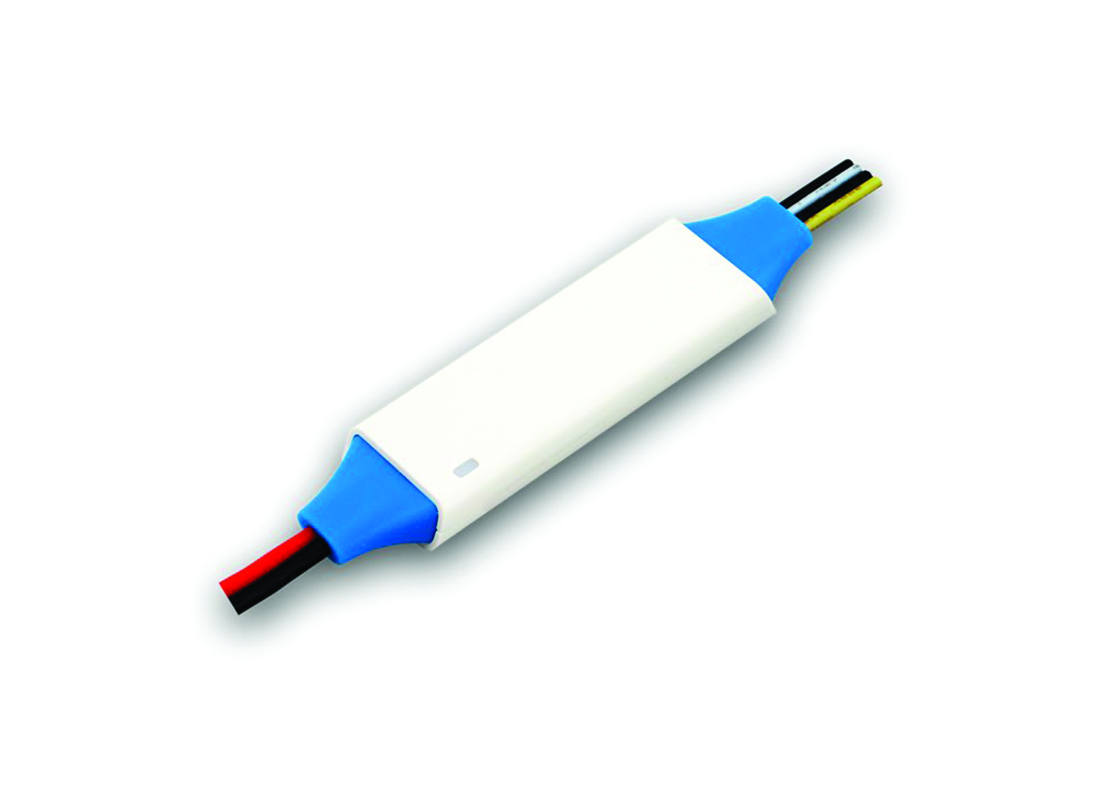

BLE Mesh Wireless White Tuning Controller M20
BLE Mesh Wireless White Tuning Controller M20
BLE Mesh Wireless White Tuning Controller M20
Item ID: BLE-M20
This series LED controller is designed to drive constant voltage LED products in voltage range of DC6-24V. It could be controlled by smart phone via bluetooth connection with the ‘Light Mesh’ app. With advanced BLE mesh technology, several controllers could work synchronized and operated by smart phone with group features. BLE-M10 has IP68 rating for outdoor and underwater use. There is option to set schedule of scenes with built-in real time clock timer.
Price: Please log in for price
-Direct smartphone connection, no router or gateway needed
-Self-expandable bluetooth mesh network
-Group function, devices could be grouped and operated
independently Support multiple devices and remote controllers
-Synchronized dynamic modes
-Scene program function with real time clock
-All-in-one Light Mesh app
Voltage: 6-24V
Rated Output Current: 2x7A
IP Rating: IP68
Power input: AWG16 Red/Black Cable
LED Output: AWG18 Flat Cable
Technical
| LED Chip: | |
| Lumen Output: | |
| Wattage: | |
| Color / CCT (K): | Tunable White |
| Optics: | |
| CRI: | |
| Voltage: | 5VDC-24VDC |
| IP Rating: | IP68 |
| Warranty: | 5 Years |
| Certification: | |
Dimensions
| Dimension (L x W x H): | 3.5"L x 0.8"W x 0.25"H |
| Weight: | |
Ordering Information
Create Product Code
Use the above information to create a custom product code specific to your needs. Add the quantity you desire.
|
|
|
|
